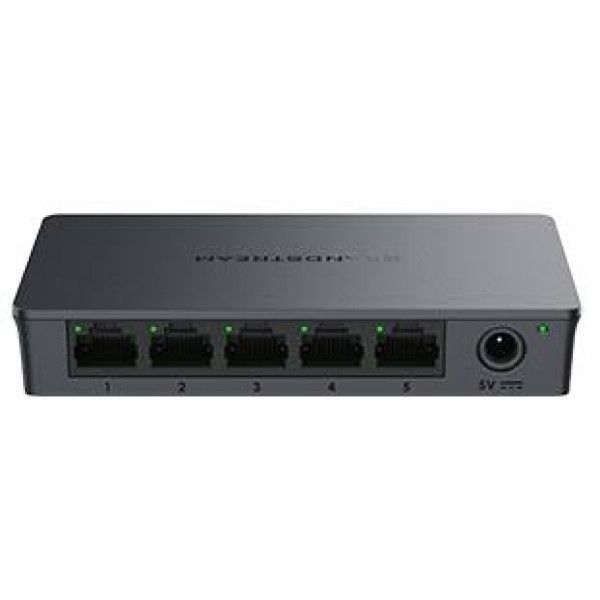

Switch Grandstream GWN7700P
The Grandstream GWN7700P is a 5-port Gigabit PoE network switch designed for homes, offices, and small to medium-sized businesses. It features 4 PoE+ ports and can power IP phones, IP cameras, Wi-Fi access points, and other PoE devices while providing fast and reliable network connectivity.
Technical Specifications
| Brand | Grandstream |
| Model | GWN7700P |
| Device Type | Unmanaged Gigabit PoE network switch |
| Network Ports | 5 × 10/100/1000 Mbps RJ45 |
| PoE Ports | 4 × PoE+ |
| PoE Standards | IEEE 802.3af / 802.3at |
| PoE Power | Up to 30W per PoE port |
| Total PoE Budget | 60W |
| Auto-Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 10 Gbps |
| Jumbo Frame | Up to 9 KB |
| MAC Address Table | 2K |
| Flow Control | IEEE 802.3x |
| QoS | 802.1p / DSCP, Default Strict Priority |
| IGMP | IGMP Snooping and Fast-Leave |
| Storm Control | Broadcast / Multicast / Unicast |
| Enclosure | Metal |
| Mounting Options | Desktop or wall-mount |
| Power Supply | External 48–53.5V DC / 1.22A adapter |
| Base System Power Consumption | Up to 2W, excluding PoE output power |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90%, non-condensing |
| Dimensions | 145 × 80 × 27 mm |
| Weight | Approx. 0.26 kg |
| Package Contents | Switch, power adapter, Quick Installation Guide |
