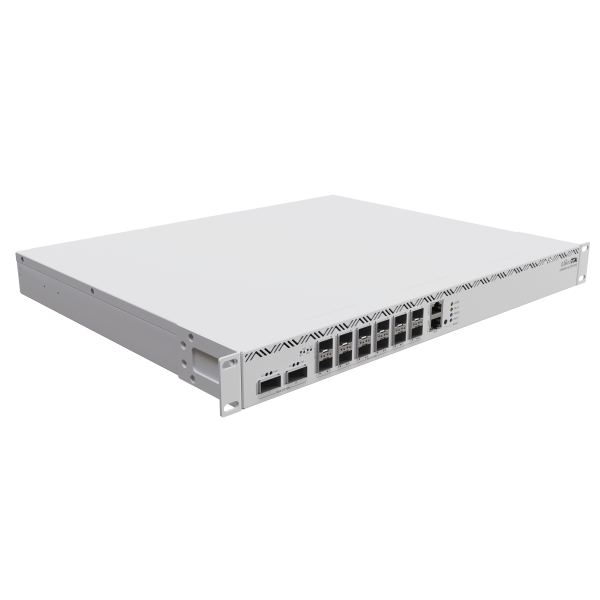

Router MIKROTIK CCR2216-1G-12XS-2XQ
MikroTik CCR2216-1G-12XS-2XQ is a high-performance Cloud Core Router designed for ISPs, enterprise networks, and data centers. Powered by a 16-core ARM CPU, 25GbE and 100GbE connectivity, and Layer 3 Hardware Offloading, it delivers exceptional routing performance for demanding network environments.
Technical Specifications
| Brand | MikroTik |
| Model | CCR2216-1G-12XS-2XQ |
| Device Type | Cloud Core Router (Rackmount) |
| CPU | AL73400, 16-Core, 2.0 GHz, ARM 64-bit |
| Memory | 16 GB DDR4 |
| Storage | 128 MB NAND |
| Ethernet Ports | 1 × Gigabit Ethernet (RJ45) |
| SFP28 Ports | 12 × 25GbE SFP28 |
| QSFP28 Ports | 2 × 100GbE QSFP28 |
| M.2 Slots | 2 × M.2 SATA (2280) |
| Switch Chip | Marvell Prestera 98DX8525 |
| Layer 3 Hardware Offloading | Supported |
| Operating System | RouterOS v7, License Level 6 |
| Power Input | Dual AC 100–240 V (Redundant Power Supplies) |
| Max Power Consumption | 128 W |
| Cooling | 4 Integrated Fans |
| Dimensions | 443 × 367 × 44 mm (1U Rackmount) |
| Operating Temperature | -20°C to +60°C |
