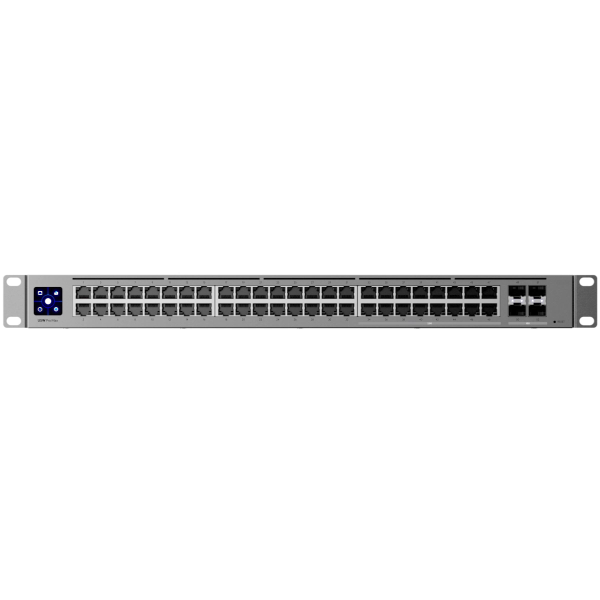

Switch UBIQUITI USW-PRO-MAX-48
The Ubiquiti USW-Pro-Max-48 is a high-performance Layer 3 managed switch designed for enterprise and high-density networks. It features forty-eight 2.5GbE Ethernet ports, four 10Gbps SFP+ uplink ports, and Etherlighting™ technology for simplified port identification and network management. Seamless integration with UniFi Network provides centralized monitoring, configuration, and advanced switching capabilities.
Technical Specifications
| Brand | Ubiquiti |
| Model | USW-Pro-Max-48 |
| Type | Managed Layer 3 Switch |
| RJ45 Ports | 48 × 2.5 Gigabit Ethernet |
| SFP+ Ports | 4 × 10Gbps SFP+ |
| Switching Capacity | 224 Gbps |
| Non-Blocking Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Layer 3 Support | Yes |
| Maximum VLANs | 1,000 |
| MAC Address Table | 32,000 |
| Etherlighting™ | Yes |
| Management | UniFi Network Controller |
| Mounting | 19" Rackmount (1U) |
| Dimensions | 442.4 × 325 × 44 mm |
| Power Supply | 100–240V AC, Internal Power Supply |
